Description: 3.071 MMBTU/hr Schmid UTSR 900 Pellet Boiler
Contact Information
Address
33 Edgmont Drive
Presque Isle, ME 04769
County
Aroostook County
Operations Contact
Barry Ingraham
Director of Physical Plant and Technology
207-768-2706
207-551-5748
barry(at)nmcc(dot)edu |
Existing Site Information
| Facility - Type |
Public College |
| Multi phase project (Y/N) |
N |
| Additional phase costs ($) |
na |
| Facility - Size (Total) Sq Ft |
170,275 |
| Total number of Students |
2,000 |
| Total number of Staff (in FTE's) |
|
| Building One |
Christie Complex |
| Square Feet |
125,500 |
| Age |
49 |
| Pipe Distance (ft) |
150 |
| Building Two |
Mailman Trades Buildings |
| Square Feet |
44,700 |
| Age |
49 |
| Pipe Distance (ft) |
0 |
| Building Three |
na |
| Square Feet |
na |
| Age |
na |
| Pipe Distance (ft) |
na |
Building Four
|
na |
Square Feet
|
na |
| Age |
na |
| Pipe Distance (ft) |
na |
| Current system - Type |
#2 oil |
| Steam (S) or Hot Water (HW) |
HW |
| Current Boiler - Name of |
HB Smith Mills |
| Current Boiler Age (In Years) |
|
| Control System (Manufacturer) |
Honeywell |
| Current Type |
#2 oil |
| Current Fuel Volume to be displaced (Gallons) |
46,988 |
| Fuel Use Data (Years + Average) (Gallons) |
55,280 |
Project Information
| New System Boiler - Name |
Schmid |
| New System Boiler - Model Number |
UTSR 900 |
| New System Boiler - Rated Capacity |
3.071 MMBTU/hr |
| Fuel Type (Chips Or Pellets) |
Pellets |
| New System Steam (s) or Hot Water (HW) |
HW |
| Storage Type |
Metal silo constructed within footprint of existing structure |
| Storage Location |
Inside exisiting structure footprint |
| Storage Capacity Tons |
41 |
| Storage Description Notes |
Silo built inside existing wall structure of building (roof removed) |
| Fuel Primary Transport Type |
Auger |
| Fuel Secondary Transport Type |
na |
| Boiler Location (Existing Space or New Space) |
Existing space |
| If New Space - Building Description |
na |
| New Space - Size |
na |
| Thermal Storage (Y/N) |
Y |
| Thermal Storage Capacity |
1,750 gallons |
| System Connection(s) Description |
Full integration with exising systems |
| Heat Exchanger (Y/N) |
N |
| Grant Amount |
$ 500,000.00 |
| Owner Cost Share |
$ 485,726.00 |
| Total Cost |
$ 985,726.00 |
| Application Date |
March 21, 2011 |
| Completion Date |
December 31, 2012 |
Estimates
| Historic Oil Use (Annual Average) (gallons) |
55,280 |
| Historic Oil Use (Annual Average) (cost $$$) |
$ 165,840.00 |
| Historic Fuel Volume to be Displaced (Gallons) |
46,988 |
| Expected Cost of Displaced Fuel - Total $$$ |
$ 140,964.00 |
| Base Fuel Price 1 (Used in Application) |
$ 3.00 |
| Base Fuel Price 2 (Used in Application) |
$ - |
| |
|
| Wood Fuel Price (Used in Application) |
$ 200.00 |
| Expected Wood Use - Tons |
544 |
| Expected Wood Use - $$$ |
$ 108,800.00 |
| |
|
Expected Annual Oil Use
(Gallons in Addition to Wood) |
8292 |
Expected Annual Oil Cost
($$$ in Addition to Wood) |
$ 24,876.00 |
| |
|
| Total cost of Wood and Oil (Annual) - $$$ |
$ 133,676.00 |
| Expected Annual Fuel Savings -$$$ |
$ 32,164.00 |
| |
|
| Expected Savings Shown in Application |
$ 43,400.00 |
Historical Data
| Base Fuel Price 1 (Used in Application) |
$ 3.00 |
| Base Fuel Price 2 (Used in Application) |
$ - |
| Wood Fuel Price (Used in Application) |
$ 200.00 |
| Five Year Fuel Use History Year 1 |
|
| Calendar Year |
2010 |
| Fuel Use in Gallons |
74,455 |
| Fuel Use Cost ($) |
$ 152,514.00 |
|
| Five Year Fuel Use History Year 2 |
|
| Calendar Year |
2009 |
| Fuel Use in Gallons |
69,107 |
| Fuel Use Cost ($) |
$ 230,646.00 |
|
| |
|
| Five Year Fuel Use History Year 3 |
|
| Calendar Year |
2008 |
| Fuel Use in Gallons |
69,028 |
| Fuel Use Cost ($) |
$ 195,394.00 |
|
| Five Year Fuel Use History Year 4 |
|
| Calendar Year |
2007 |
| Fuel Use in Gallons |
75,085 |
| Fuel Use Cost ($) |
$153,520.00 |
|
| |
|
| Five Year Fuel Use History Year 5 |
|
| Calendar Year |
2006 |
| Fuel Use in Gallons |
77,489 |
| Fuel Use Cost ($) |
$154,079.00 |
|
|
| Five Year Total Fuel Use (Gallons) |
365,164 |
| Five Year Yearly Average Fuel Use (Gallons) |
73,033 |
| Five Year Total Fuel Cost ($) |
$ 655,507.00 |
| Five Year Average Fuel Cost ($) |
$ 131,101.40 |
Fuel Use
|
|
| Year Ending |
4/30/2013 |
4/30/2014 |
4/30/2015 |
4/30/2016 |
4/30/2017 |
Cumulative
Totals |
|
| PELLETS used |
308.00 |
|
|
|
|
308.00 |
(in tons) |
| ACTUAL COST |
$61,446.00 |
|
|
|
|
$61,446.00 |
(cost + shipping costs) |
| OIL used |
10,910.00 |
|
|
|
|
10,910.00 |
(in gallons) |
| ACTUAL COST |
$35,566.60 |
|
|
|
|
$35,566.60 |
(delivered cost) |
| TOTAL COST |
$97,012.60 |
|
|
|
|
$97,012.60 |
(cost of both fuels) |
| |
Additional Notes
Categories
Aroostook County, Hot Water, Wood Pellets,
Extra Files & Images:

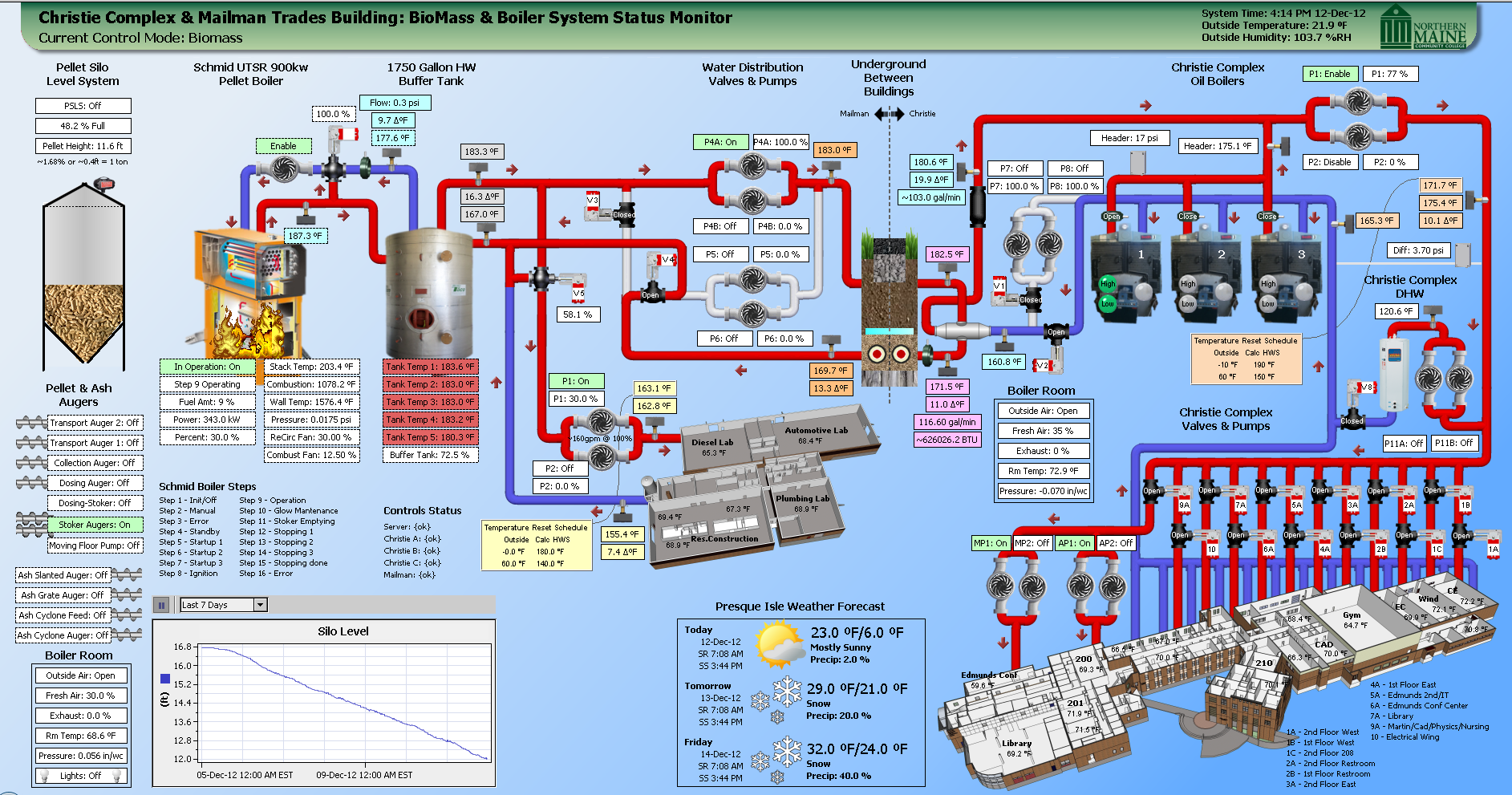

 | Schmid Boiler @ NMCC |  | RealTime System Montior Display |
|
